SPECIFICATION

Specification

  • Perfect insulating
  • Perfect protection
  • Leakproofness
  • Noise insulation
  • Fire protection
  • quick installation



Standard size



Type

Core Type

PUR

PIR

Thickness

Width

Thickness

Width

Male-Female Sandwich Panel

80,100,120 , 150,

200 (mm)

1.17 (m)

80,100 ,120, 150 ,

200 (mm)

1.17 (m)

CAM-Lock Sandwich Panel

80,100,120 ,150 ,200 (mm)

1.17 (m)

Panel 80,100,120, 150 , 200 (mm)

1.17 (m)

Core Density (Kg/m3)

40± 2

40± 2

Thermal Conductivity (W/m*k)

0.022

0.022

Typical fire Resistance Class

Euro Class B2

EI 30

Compression Strength (MPa)

0.095

0.095

Tensile strength (MPa)

0.018

0.018

Shear Strength (MPa)

0.11

0.11

POLYESTER

Ensures Resistance against ambient conditions, high flexibility and thermal stability. It is the most common paint type. It may be used for different applications in interior and exterior spaces.

Paint Properties

Material

Polyester

Average thickness

25 mic.

Thermal resistance

80 0 C

Surface hardness

1 N/mm2

Corrosion strength

2 mils.

UV resistance

3 mW/cm2x

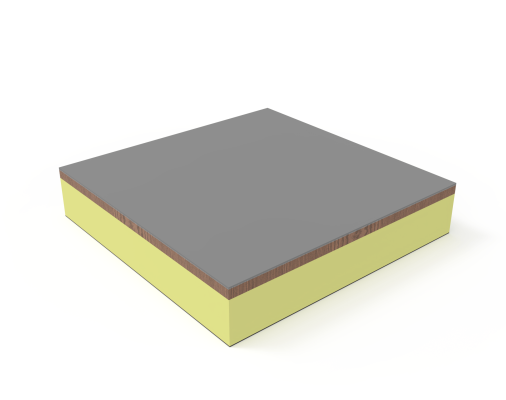

  1. FIBER FLOOR
    The insulated floor consists of (10 cm injected polyurethane with 16 mm wood from internal side covered with fiber glass layer)

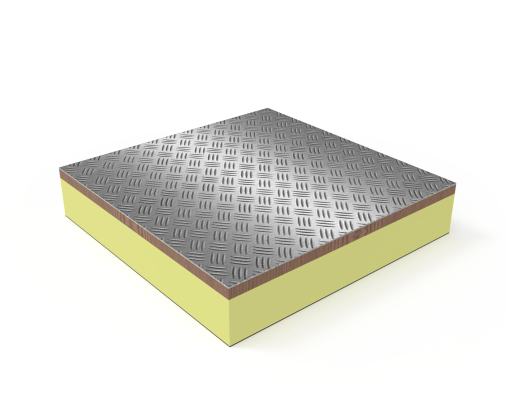

  2. ALUMINUM FLOOR
    The insulated floor consists of (10 cm injected polyurethane with 16 mm wood from internal side covered with aluminum shaker plate)
  3. STAINLESS STEEL FLOOR
    Special floor insulation consists of (10 cm injected polyurethane with 16 mm wood from the above side covered with stainless steel plate
