CEILING SYSTEM

The hiding bar ceiling system, under the indoor ceiling, can’t see the T-bar ceiling; only the ceiling can be seen in turn, the suspension depends on the connection between the hidden bar ceiling and the ceiling to achieve the weight-bearing effect.

INTRODUCTION DETAIL:

The hiding bar ceiling system is currently selected by most customers, mainly because of its aesthetics, less ceiling seam, the ceiling in a plane, easy to clean, and so on. In pharmaceutical factories, hospitals, and other places where the cleanliness requirements are relatively high, better match the circulation of air to ensure the flow of indoor air

PRODUCTS ADVANTAGE

1. Beautiful appearance, less ceiling stitching.
2. Easy to clean, able to meet the requirements of high cleanliness requirements.
3. Ability to ensure the flow of indoor air.
4. Wide range of applications.

Specification

Standard size

Thickness

Skin type

Panel Thickness

1230mm*3000mm

(up to 6000mm height)

0.5mm

steel 0.5 or 0.4

St. Steel 304

50mm

Factory –made cut-outs (for filter &light fixtures and other service) Infill: PUF polyurethane (40 Kg/m³) -EPS (35 Kg/m³)

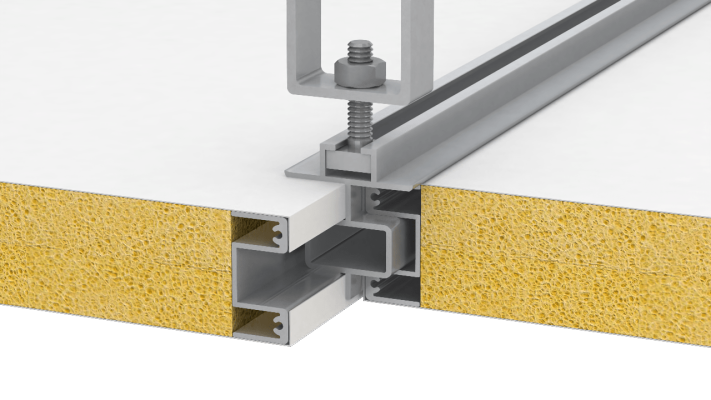

Ceiling suspension.
