DETAILS OF ASSEMBLY

Sandwich Panels specification

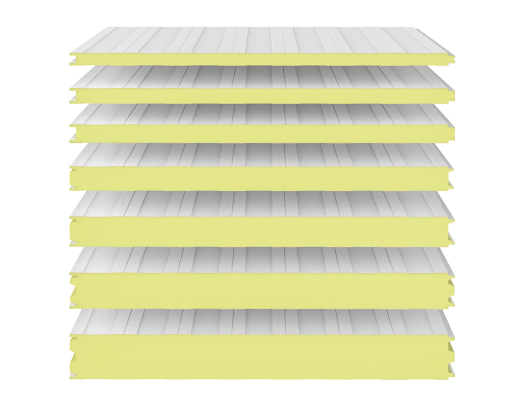

PSI produces wide range of panel thickness (80 -100 -120) mm adapts the customer’s need of the cooling and freezing rooms. The panel assembled with each other by male-female deep groove that give the panel strength, or by the Cam lock system.

All panel sheets are covered with protective films to protect the panel from scratching during production and installation

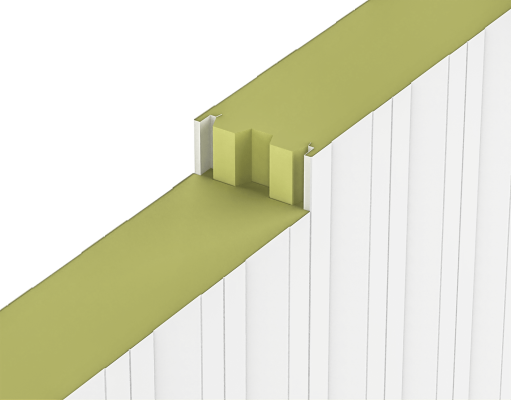

THE WALL CONNECTION:

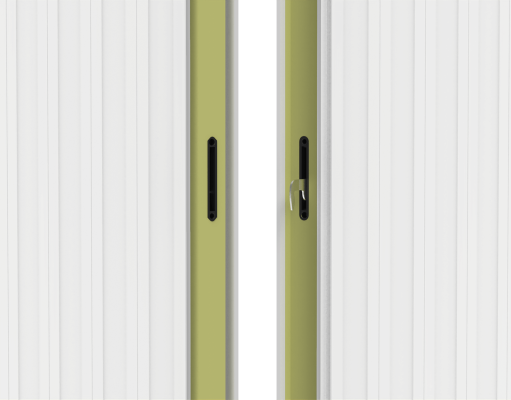

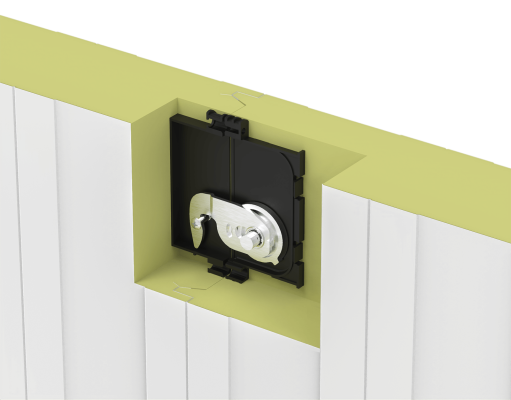

 The panel is connected by double male female or by cam lock system. There is triple male female panel On request for the freezing room.

THE CONNECTION BETWEEN ROOF AND WALL:

 The roof sit on 5 cm of the wall which give strength to the roof. safe for walking on it. The upper line between the roof and the wall is injected with polyurethane after installation and covered with angel sheet with the same color of the panel.

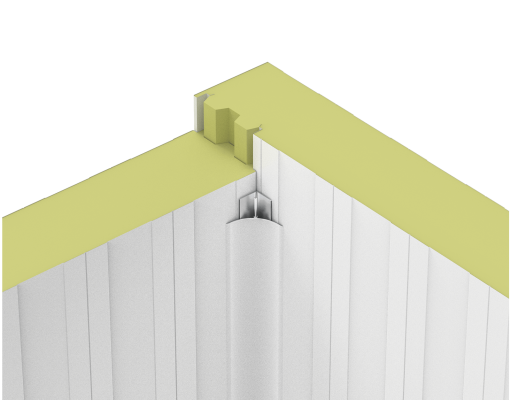

THE CORNER (C1):

 PVC standard corner for panel thickness (100)mm. It has a double groove for the panel connected at 90 angle in the room corner and suitable to fix a pvc profile curve from internal side. This corner is injected polyurethane foam in the factory to give a perfect insulation solution in corner connection

THE CORNER (C2):

 Second type of corner suitable to panel (80- 100-120) mm. It gives a perfect insulation of the corner and

aluminum angle fixing the panel at the corner and give it strength. PVC coving profile (RAL 9010) is covering the aluminum angle.
